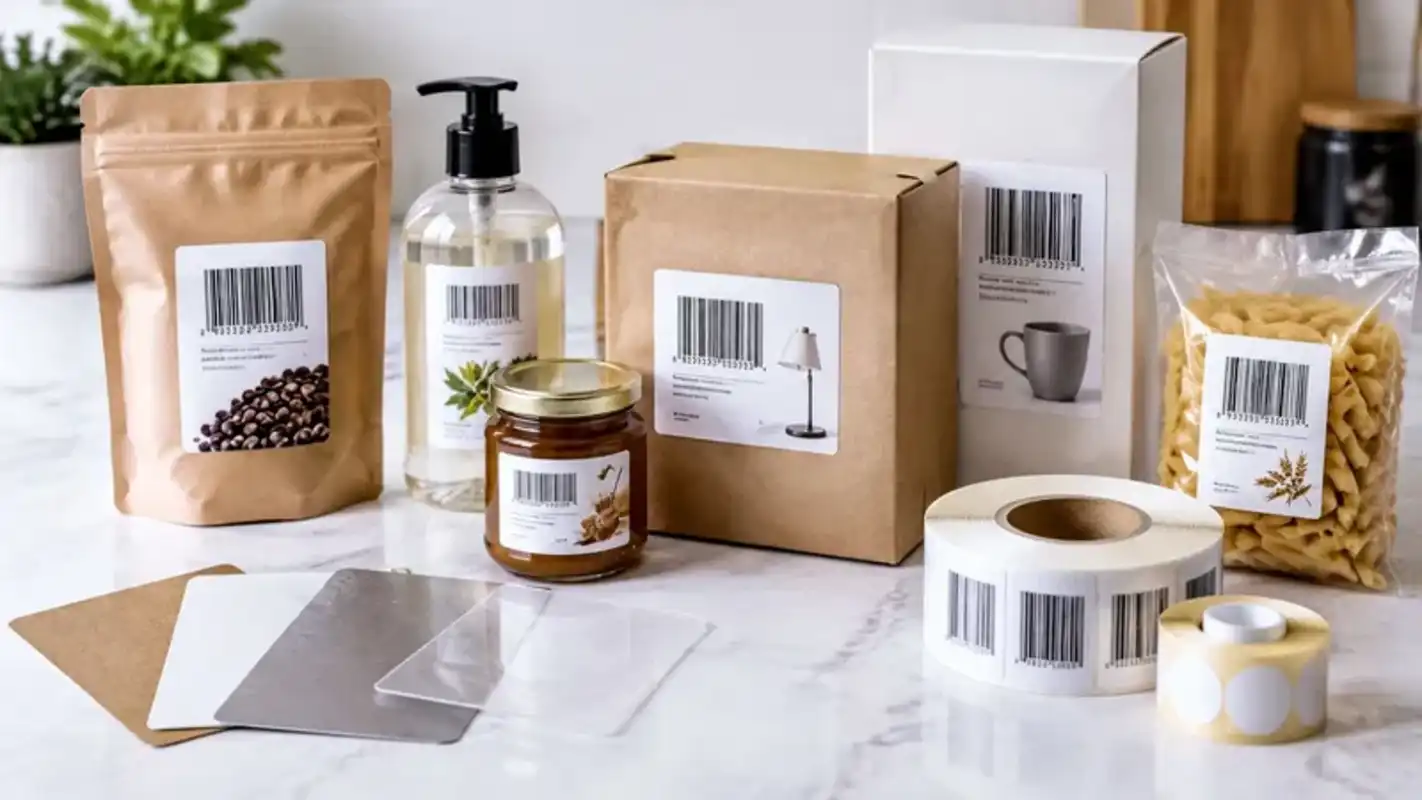

Labels and Barcodes for UK Product Packaging

You're ready to approve a product label. The colours look right, the logo sits neatly on the pack and the printer needs the final artwork. Then someone asks whether the barcode will scan on the curved bottle, whether the label will survive handling and whether the small print is still readable at its actual size.

Those questions belong at the start of production, not at the approval deadline. Labels and barcodes need to work as an applied system, with the packaging surface, adhesive, printed information and scanning requirements considered together.

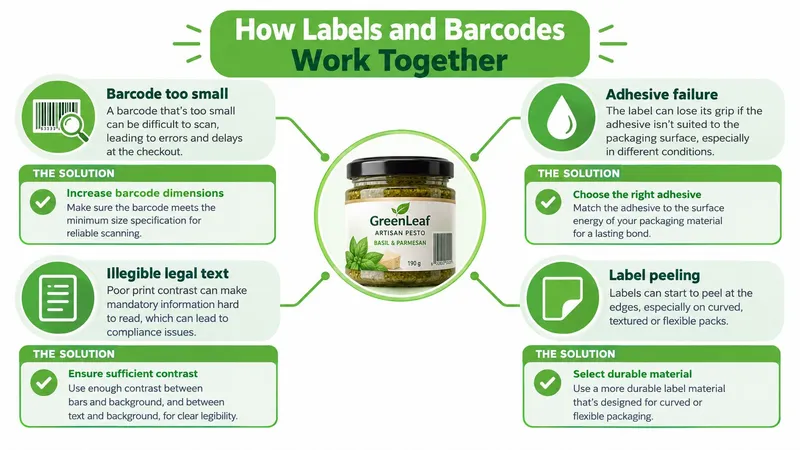

How Labels and Barcodes Work Together

Consider a small business preparing a bottled product for retail. Its label looks convincing on screen, but the physical sample reveals problems: the edges lift, the barcode wraps too far around the bottle and the mandatory wording is difficult to read against the background. None of these faults can be fixed by approving the colours.

The label carries the information and presents the brand. The barcode provides a machine-readable symbol. The Global Trade Item Number, or GTIN, identifies the product represented by that symbol. Successful production means specifying these connected parts without confusing their separate jobs.

This operational role has a long history. The UK's first retail barcode scan took place in October 1979, when Melrose tea bags were scanned at Keymarkets in Spalding, Lincolnshire; by 1996, scanning was recorded in 25,000 UK stores, according to GS1 UK's history of the barcode.

Specify the applied label

Before design begins, agree on the pack, its contents, the application conditions and the information the customer or retailer needs. A flat artwork file can't demonstrate how a label behaves after application.

• Packaging: Supply an actual container or an accurate production sample.
• Use conditions: Describe storage, handling and any expected exposure.
• Information: Identify the product record, required wording and scanning environment.

Treat the finished, labelled pack as the approval object. A pleasing PDF is only part of that decision.

Understanding Product Identification and Label Content

A packaged-goods label contains different kinds of information, and each needs an owner. The product name helps customers recognise what they're buying. The identifier connects that item to a product record, while batch details, disposal instructions and responsible-business information serve other purposes.

UK and European GTINs typically contain 13 digits, although 8-digit GTINs are available for smaller products. Each distinct product or variation requires its own identifier, while the same GTIN can be used across retailers and marketplaces worldwide, as explained in GS1 UK's guide to obtaining product identifiers.

Separate identity from supporting information

For a generic carton of packaged goods, establish distinct artwork areas rather than squeezing everything around the logo.

A useful working file records who approved each area. Designers shouldn't have to infer the correct identifier from an old label, and printers shouldn't be expected to decide which product description is legally sufficient.

Distinguish retail packs from shipping labels

A retail label and a dispatch label may share a production workflow without sharing a purpose. Material Handling USA's bulk labels for logistics teams is a useful procurement reference when considering shipping-label supplies alongside product labels.

Likewise, when planning custom mailer boxes, reserve suitable space for dispatch information rather than assuming the retail barcode can perform every fulfilment task. Clear separation makes artwork ownership and warehouse instructions easier to manage.

Choosing Label Materials for Different Products

Choose the material for the pack and its use, not just its appearance. A textured paper may suit a dry carton, while a frequently handled container needs a different discussion about exposure, print protection and flexibility. Material names alone aren't enough to approve either application.

Ask the supplier to identify the proposed stock, coating and compatible print process. Request a representative sample, then compare it on the actual packaging rather than against an unrelated swatch.

Label material selection guide

For flexible packs, evaluate the label while the filled package is held, squeezed and placed on display. When specifying pouch packaging, review the intended label position on a filled sample, not only the flat pouch template.

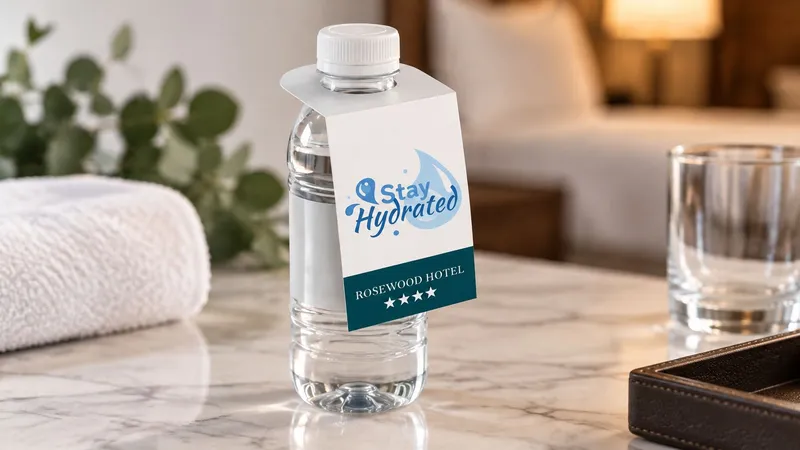

When a tag is more appropriate

Supplementary information doesn't always need an adhesive label. Bottle Neck Tags | Custom Printed, Two Sizes | The Print Warehouse drape over a bottle's neck and offer laminated finishes or an unlaminated writable surface, making them an option for messages and promotional details.

Keep supplementary presentation separate from information that must remain with the product. A removable tag should never become the accidental home of wording that customers need after it has been discarded.

Material check: Approve the printed construction, including its finish, rather than approving an unprinted stock sample and assuming the result will be equivalent.

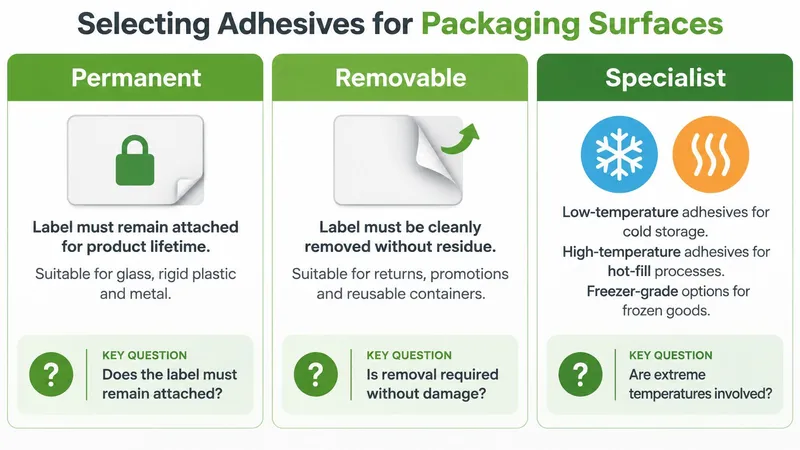

Selecting Adhesives for Packaging Surfaces

An adhesive specification starts with a question: what must happen when someone tries to remove the label? A retail product label may need to remain attached throughout use. A reusable hospitality container may need an intentional removal process, while a promotional sticker might need to come away without damaging the pack.

“Permanent” and “removable” describe intended behaviour, not an unconditional promise on every surface. Give the supplier the packaging material and finish, then agree how the result will be tested.

Compare the removal requirement

Permanent adhesives belong on the shortlist when the label must stay with the pack. For example, a retailer-facing product label shouldn't be selected on the assumption that easy peeling is desirable.

Removable adhesives deserve investigation when clean removal is part of the intended workflow. For returnable containers, specify who removes the label, at what stage and what condition the container must be in afterwards.

Specialist options require a more detailed supplier conversation. Cold application, temperature exposure, unusual surfaces and demanding handling conditions should be described explicitly rather than left under a general request for a stronger adhesive.

Test the complete construction

Surface cleanliness, texture, application pressure and the interval before evaluation all belong in the trial record. Ask the supplier for the recommended application conditions and dwell time, then follow those conditions during testing.

• Apply consistently: Use representative packaging prepared as it will be in production.
• Inspect the edges: Look for lifting after handling and storage.
• Test removal deliberately: Record residue, pack damage and the effort required.
• Check the lifecycle: Include the conditions between application and disposal or reuse.

When considering flexible vinyl adhesives, discuss the complete face-material and adhesive combination rather than treating flexibility as proof of suitability. If a trial fails, change a defined variable and repeat it. Changing the material, adhesive and application method together makes it difficult to identify what solved the problem.

Choosing the Right Barcode Standard

Select the barcode format from the assigned identifier and operational requirements. Don't choose whichever striped symbol fits the available space. EAN and UPC formats belong to the product-identification system, but they aren't interchangeable artwork styles.

GS1 UK distinguishes the product's identifying digits from their printed representation and explains their use in retail and marketplace systems in its barcode questions answered with Amazon. That distinction matters because a readable symbol can still refer to the wrong product.

Compare the consumer-unit formats

Start by confirming the sales channel. A consumer unit going through a checkout needs a different specification discussion from a distribution case or an internal warehouse label. Ask the retailer or trading partner for its requirements before generating final artwork.

Control the product mapping

Maintain an approved relationship between the product description, variant, identifier and artwork file. When a designer duplicates a label to create another flavour or pack option, the barcode needs an explicit review rather than being carried forward unnoticed.

A hypothetical jar label could scan cleanly while still retrieving the record for a different variety. That's a data-control failure, not necessarily a print-quality failure, so the approval process must address both.

For teams connecting printed symbols with receiving, picking and stock handling, Evright Industrial's scanning workflow tips for labels provides a practical supplementary resource. Use workflow discussions to identify who checks the decoded result and where exceptions are handled.

The deciding question isn't whether a scanner beeps. It's whether the intended system receives the correct identity for the item being handled.

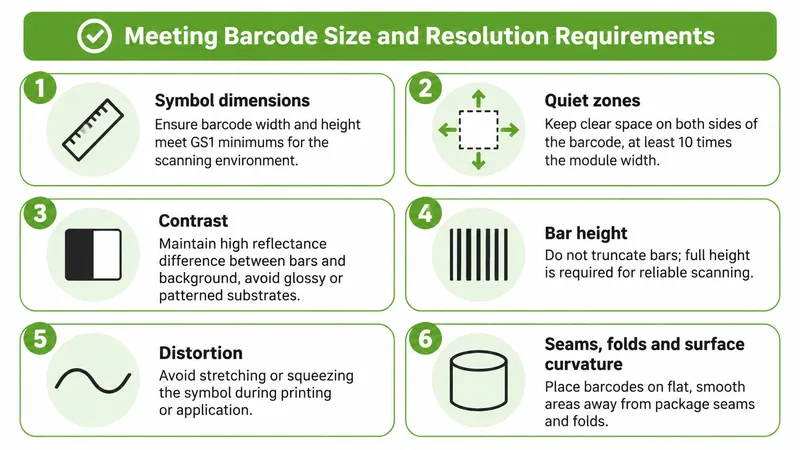

Meeting Barcode Size and Resolution Requirements

Barcode dimensions need a technical specification, not a visual judgement. Under GS1 UK's barcode production guidance, standard point-of-sale EAN/UPC production uses approximately 100% nominal magnification, with a commonly cited nominal size of 22.85 mm high by 37.29 mm wide; reduction to 80% may be possible where printing and scanning conditions support it.

The same guidance also gives a 32 mm minimum bar-height point for retail consumer-unit symbols. Don't combine these reference dimensions into a universal artwork prescription: ask the supplier to confirm the applicable symbol specification, scanning environment and measurement basis before approving dimensions.

Protect the symbol's geometry

Quiet zones are the clear areas required around the barcode. Use the requirements for the selected symbology rather than applying a generic margin to every format. Background patterns, borders and nearby text must stay outside the specified clear space.

Placement deserves equal attention. Keep the symbol away from seams, folds and consistently curved areas, and assess its position on the completed pack. If the only available panel forces an unsuitable placement, revise the layout or label construction rather than squeezing the barcode into it.

• Contrast: Specify a strong difference between bars and spaces, including the effect of the underlying pack.
• Bar height: Preserve the applicable height rather than trimming bars to recover design space.
• Scaling: Avoid stretching, squeezing or separately adjusting width and height.
• Resolution: Retain vector data and have the printer assess how the symbol will reproduce through the intended process.

Require measured quality

The GS1 guidance cited above identifies grade 1.5/C or above as the normal minimum, with a limited grade 0.5/D exception for ITF-14 printed on corrugated fibreboard. Treat that exception as specific, not as permission to accept lower-quality retail symbols.

Request an ISO/IEC-compliant verifier report for critical retail or logistics work. Agree the acceptance criteria before production so that a failure leads to a defined corrective action rather than an argument over whether the barcode looks acceptable.

A successful scan demonstrates a read under those conditions. A verifier report provides a technical basis for judging printed symbol quality.

Preparing Artwork for Reliable Label Printing

Build the file around an agreed packaging template and production specification. Starting with an attractive layout and fitting the technical content afterwards usually forces avoidable compromises.

Establish the physical boundaries

Confirm the finished label size, shape and intended application position. Obtain the printer's requirements for bleed, safe areas, cutlines and file delivery rather than assuming settings from a previous job apply.

Keep the cutting information clearly separated from printable artwork. Show which elements may extend into bleed and which must remain safely inside the finished edge, particularly where application variation could make an otherwise balanced layout appear misplaced.

• Template: Use the approved packaging or label drawing.
• Placement: Identify the intended panel and application orientation.
• Allowances: Agree cutting and application tolerances with the supplier.
• Construction: Record the material, adhesive and finishing instructions.

Prepare print elements without unnecessary effects

Retain the barcode as vector artwork and keep it free of decorative treatments. Don't add shadows, outlines or transparency effects to make it match the branding. Technical symbol requirements should govern that area.

Agree colour handling with the printer, including any opaque backing needed for clear material. Review small text separately from large display lettering, and inspect the file at finished size rather than relying on a zoomed screen view.

The mandatory-information panel needs its own approval. The designer can organise the wording, but the business responsible for the product should supply and approve the applicable content.

Separate fixed artwork from variable data

Batch details, dates and other changing information need defined fields and a controlled data source. Specify which system supplies each field, who checks it and how missing or unexpectedly long entries are handled.

A test file should include representative content, not just an unusually short example that makes the layout look comfortable. Check the output after data has been inserted, since an empty template doesn't demonstrate the final result.

Version control should connect the artwork to the product record and production specification. Save the approved file, proof, material reference and approval history together, and make obsolete versions clearly unavailable for ordering.

Release discipline: Approve a named artwork revision against a named product and material specification. “Use the latest file” isn't a reliable production instruction.

Checking Print Quality Before Production

A visual proof and a barcode verification result answer different questions. The proof supports decisions about layout, content and appearance. Technical checks establish whether the production sample meets the agreed barcode criteria.

Review with the right people

Ask the product owner to approve identity and wording, the designer to check artwork execution, and the printer to confirm production suitability. A single approval email shouldn't blur those responsibilities.

For a small food pack, pause before accepting a reduced layout and route the text-size question to the responsible reviewer. For a traded-unit carton, confirm that the symbol specification belongs to that packaging level rather than borrowing the consumer-unit layout.

Approve representative output

Where the application is critical, agree how the sample represents the final print process and construction. A proof on convenient substitute paper can help with content, but it can't settle questions about the chosen adhesive or the finished pack.

• Record exceptions: List anything the proof doesn't demonstrate.
• Resolve failures: Assign corrective work before release.
• Retain evidence: Keep the approved sample and technical documents with the job.
• Repeat after changes: Reassess affected checks when artwork or construction changes.

Finish with an explicit release decision that names the approved revision and any conditions attached to it. This gives repeat orders a usable reference instead of relying on someone's memory of the previous run.

Planning Recyclable and Future-Ready Labels

A recycling symbol isn't proof that the complete pack is compliant or recyclable. Product identification and environmental information need separate checks, even when they share a label.

The UK government's supplementary recyclability assessment guidance states that there are currently no legal obligations for recyclability labelling under packaging EPR. It also explains that attached adhesive labels generally need assessment with the packaging component; for rigid plastic bottles in the cited assessment context, an attached label or sleeve should not exceed 40% of the total surface area.

Assess the packaging combination

A paper face material doesn't settle the question on its own. Procurement and compliance teams should review the adhesive, label coverage, ink, coatings and any laminate as part of the intended packaging construction.

• Removable or permanent: Establish whether separation occurs in the intended collection or reuse process.
• Paper or film: Obtain evidence for the proposed combination rather than transferring a claim from another pack.
• Coverage: Check the relevant assessment method before choosing a large decorative sleeve.
• Finishes: Request supporting information for coatings and laminates before making environmental claims.

A smaller label isn't automatically the better decision. It still needs to carry usable information and satisfy the identification requirements already established.

Leave room for controlled changes

UK packaging-labelling policy materials describe a standardised recycling-labelling approach for specified packaging categories. Treat policy development separately from obligations currently applicable to your business, and confirm the UK nation, material, packaging format and producer role before print.

For EU-facing packs, ask the compliance owner to confirm the applicable requirements and any pending specifications before fixing disposal artwork. Avoid printing speculative claims merely to make a pack appear future-ready.

When reviewing custom packaging options, reserve a controlled information panel that can be revised without rebuilding the entire design. Keep the evidence behind environmental wording alongside the artwork approval, with a named person responsible for checking it before reorders.

Quick Reference for Label and Barcode Decisions

Use the following as a supplier-conversation checklist, not a substitute for the exact requirements of your product, packaging and sector. Bring a physical pack, the approved product information and the intended use conditions to that conversation.

Choose and specify

• Material: Match the construction to handling and exposure, then inspect a printed sample.
• Adhesive: Define attachment and removal requirements before requesting a recommendation.
• Identifier: Retrieve the approved product record rather than copying an old artwork file.
• Barcode format: Confirm the destination's requirements and the assigned identifier.
• Layout: Reserve technical and mandatory-information areas before decorating the remaining space.

Prepare and release

Keep unresolved items visible. A purchasing deadline shouldn't silently convert an unanswered technical question into approval.

For repeat work, check what has changed since the last run: the container, supplier, material, artwork, product information or destination requirements. Reuse the approved specification where appropriate, but don't assume an unchanged filename means an unchanged product.

The most useful procurement document is a compact record of decisions, evidence and responsibilities. It should let another person order the same label without reconstructing the project from email attachments.

Applying the Reference to Common UK Packaging

The following are illustrative production situations, not reported customer results. Each changes the emphasis of the approval process while using the same underlying discipline.

Retail bottles and packaged food

For a retail bottle, start with the assigned EAN identification and test the label position on the actual container. Keep promotional messaging subordinate to the technical panel, and check that a presentation pack such as a bottle box doesn't obscure information that needs to remain accessible.

A packaged food label introduces a specific text-layout constraint. Mandatory information must generally be accessible without opening the product and normally needs a minimum x-height of 1.2 mm; where the largest packaging surface is below 80 cm², this may reduce to 0.9 mm, according to GOV.UK's packaging and labelling guidance.

Don't interpret that exception as permission to shrink the whole design. Have the responsible reviewer confirm the packaging-area basis and measure the printed mandatory text.

Reusable hospitality containers

A café relabelling reusable containers needs an agreed removal routine as well as an application routine. Trial the proposed construction through the intended handling and cleaning process, then decide whether the result supports reuse without unacceptable residue or container damage.

For event service, distinguish temporary identification from information that must remain available throughout use. Make the replacement process clear to staff so that an old label isn't mistaken for current contents.

Medicinal-product packaging

Medicinal packaging requires sector-specific review. Under the cited UK arrangements, marketing-authorisation holders may voluntarily include a 2D Data Matrix carrying product information, expiry, batch, GTIN and, where applicable, a serial number, as set out in GOV.UK's medicinal-product labelling guidance following the Windsor Framework.

Here, approve the populated data and decoding process alongside the printed construction. Reproducing the appearance of a symbol isn't enough to establish that the finished pack carries the intended information.
