ID Badge Printing Made Simple: Your Complete UK Guide

You're staring at a spreadsheet of names, a low-resolution logo and a deadline that has somehow moved from “next week” to “Monday morning”. The office needs staff badges, the event team needs accreditation passes, and somebody has just asked whether the QR code should contain employee details. That's the point at which ID badge printing stops being a simple print job.

A badge is a visible identity credential, a data asset and, in some workplaces, part of an access-control system. The right result comes from deciding what the badge must do, what information it should show and what information should stay out of sight. This guide follows the production process from specification and artwork through proofing, finishing, delivery and secure disposal.

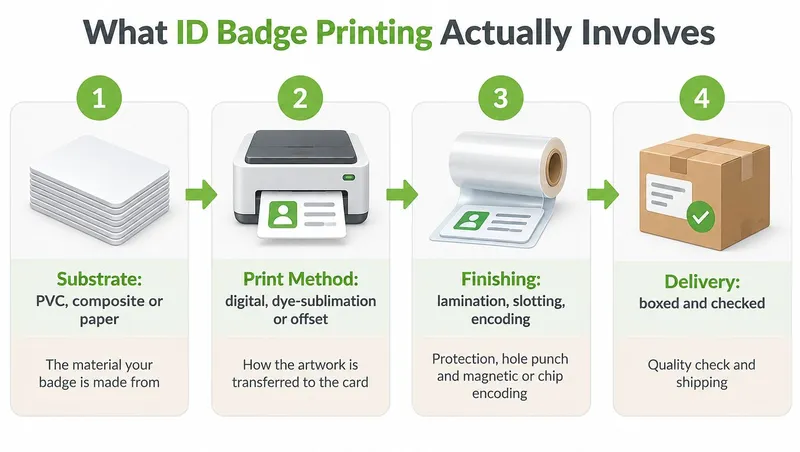

What ID Badge Printing Actually Involves

At 8pm on a Sunday, a facilities manager discovers that the artwork for 200 staff badges is a low-resolution JPEG. The names are in a separate spreadsheet, the photographs have inconsistent backgrounds and the access-control supplier still needs the employee numbers. The printer can produce cards, but it can't rescue an unplanned workflow.

ID badge printing involves four connected decisions:

1. Substrate. Choose PVC, composite, paper or another material according to the badge's lifespan and environment.
2. Print method. Digital printing suits short runs and variable data. Offset printing can suit bulk production, while screen printing works for strong spot colours and selected specialist finishes. Dye-sublimation is common for personalised plastic cards.
3. Finishing. Lamination protects the artwork. Slotting or hole punching makes the card wearable. Encoding adds a machine-readable function where the access system supports it.
4. Delivery. Badges may arrive boxed, sorted by department, supplied with lanyards or clips, or packed for distribution across several sites.

A print shop will usually manage artwork checks, printing, cutting, lamination and packing. Encoding, specialist chips, access-system configuration or unusual substrates may involve a separate supplier. Ask who owns each hand-off before approving the order. Lamination, variable data, chip encoding and multi-site packing can affect the production schedule, so they shouldn't be added as afterthoughts.

A practical workflow starts with purpose and access level, then moves to data collection, artwork, proofing, production inspection and delivery. The UK print shop ordering platform is one route for managing a print order, but the same principles apply whether you order online, use a local trade printer or run cards in-house.

The rest of this guide follows that sequence. Decide the badge's job first, build a restrained specification, prepare artwork correctly, choose wearability and security features, then check every record before release.

Choosing Size, Material and Finish for Your Badges

Start with the environment, not the catalogue. A permanent employee pass carried every day needs a different construction from a paper conference badge that will be discarded after the event.

The standard CR80 card size is 85.6 x 53.98mm, which fits common wallets and card holders. It's the sensible default for staff, contractors and visitors who need a familiar card format. A 70 x 25mm event bar is better for a short name badge worn on a lanyard, especially where the organiser wants a simple name, role or access zone.

Portrait cards suit vertical photographs and narrow lanyard layouts. Horizontal cards give more room for a name, company and role on one line. If a reader or wallet is involved, use a fixed ID-1-sized template and confirm compatibility before ordering.

Match the substrate to the lifespan

760-micron PVC is a sturdy choice for permanent staff passes. 500-micron stock can work for budget visitor cards where the badge has a shorter service life. For sustainability-led briefs, ask about biodegradable PLA or pulp options, but check whether the chosen print and finishing process is compatible.

Teslin or paper can suit short-life event use. Paper is easy to print and dispose of, but it won't tolerate rain or repeated handling as well as plastic. Outdoor events need a weather-resistant solution, particularly if the badge must remain legible after being worn throughout the day.

Choose a finish that people can use

Gloss lamination gives strong colour and surface protection, but overhead lighting can create glare across a photograph or name. Matte lamination is easier to read under office fluorescents and warehouse LEDs. Soft-touch lamination gives a premium feel and helps reduce visible fingerprints at customer-facing desks, although it costs more.

A simple rule works well: pay for thicker stock when the badge will be handled daily, clipped to equipment or retained for a long period. It's overspec for a disposable visitor card or one-day indoor event. You can review suitable plastic card formats and finishing options through plastic business card printing, while still checking whether the product supports your required slot, barcode or lamination.

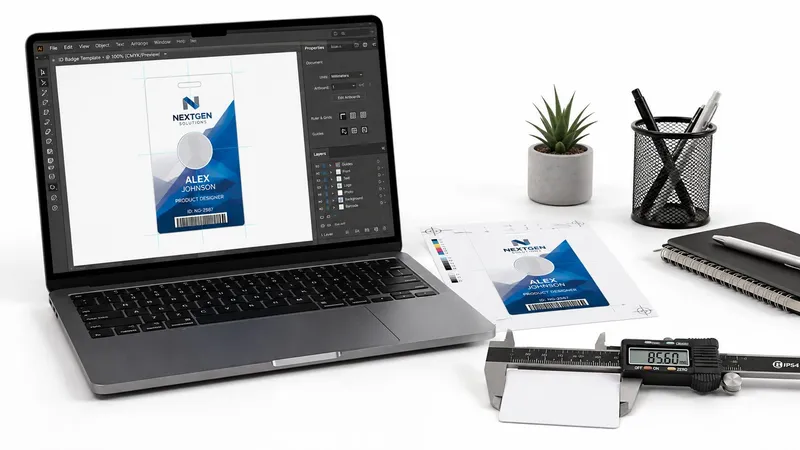

Setting Up Artwork and Using the Right Templates

Most reprints start with artwork, not the press. A logo placed on the trim line, a photograph exported at screen resolution or a back design supplied upside down can waste an entire run.

Set up the file at 300 dpi minimum at actual size. Work in CMYK, not RGB, because the printer transfers ink or dye onto a physical substrate rather than displaying light on a screen. Add 3mm bleed on every edge, and keep important text and faces inside a 3mm safe zone from the trim line.

Use the template before you design

A print-ready PDF/X-1a is the safest hand-off for most professional print shops. High-quality PDF, AI, EPS and PSD files can also work when prepared correctly. Avoid Word files, low-resolution JPEGs and Canva exports that haven't been checked for bleed, trim and correct page size.

Use the printer's CR80 template and keep the front and back on the correct layers. Put the photograph, name, role and expiry date inside the safe area. If the card will be punched, reserve space for a 2.5 x 9mm slot and keep artwork clear of that area.

Before uploading, check these items:

• Images: Use sharp, identifiable portraits with consistent lighting and cropping.
• Fonts: Outline fonts or embed them in the PDF so the typeface doesn't substitute during production.
• Colour: Convert artwork to CMYK and inspect areas where brand colours may shift.
• Variable data: Supply names, roles, photographs and identifiers as a separate, clearly matched data file where the printer requests it.
• Back design: Confirm orientation and reading direction before approval.

The most common artwork error is a logo sitting on the trim line. Before production, move it inside the safe zone and extend the background through the bleed. The finished card then retains a clean margin even if the cut varies slightly. The same discipline applies to names, QR codes and expiry dates.

Don't use a general leaflet layout for a badge. A leaflet printing service may use different dimensions and bleed settings from a CR80 card. Download the printer's CR80 templates for InDesign, Illustrator or Canva users, then build from the supplied guides instead of guessing.

Security Features, Lanyards and Wearability Options

A badge can look secure without controlling access. A photograph helps a guard compare the wearer with the card. A barcode, QR code, magnetic stripe or contactless chip can support a controlled system, but only when the organisation maintains an authoritative, revocable record behind it.

UK government guidance on examining identity documents identifies features such as machine-readable zones, detailed linework, UV-reactive elements and raised-feel intaglio printing. Most workplace badges don't need passport-level construction, but the underlying principle is useful: design security around inspection, tamper resistance and verification, not decoration alone. Use a high-contrast identifier, a visible expiry date, quiet space around machine-readable codes and a tamper-evident overlay where reuse is a concern. UK guidance on examining identity documents provides the relevant security-design context.

Select features for the working environment

Gloss laminate can produce glare in a warehouse or office. Matte laminate improves quick visual checks. Soft-touch laminate feels better at a reception desk, but its extra cost isn't justified for a one-day pass.

A top-centre slot generally suits portrait cards. A side slot works better on horizontal designs. Metal clips and bulldog grips are practical for lightweight PVC, although they can mark thicker cards. Breakaway lanyards are a sensible choice in schools and warehouses because they release under tension.

Encoding adds cost and requires accurate data. Magnetic stripes, barcodes, MIFARE and QR codes can speed access or identify a record, but a printed code is not proof of identity by itself. The verifier should query a controlled system and reject expired or cancelled credentials. If you need a broader operational view of visitor credentials, secure visitor tracking with Overton offers useful context around managing visitors beyond the printed card.

Treat the card and access database as separate assets. Printing a replacement must not automatically extend permissions. Choose lanyards for printed badges only after confirming slot shape, card orientation and the wearer's environment.

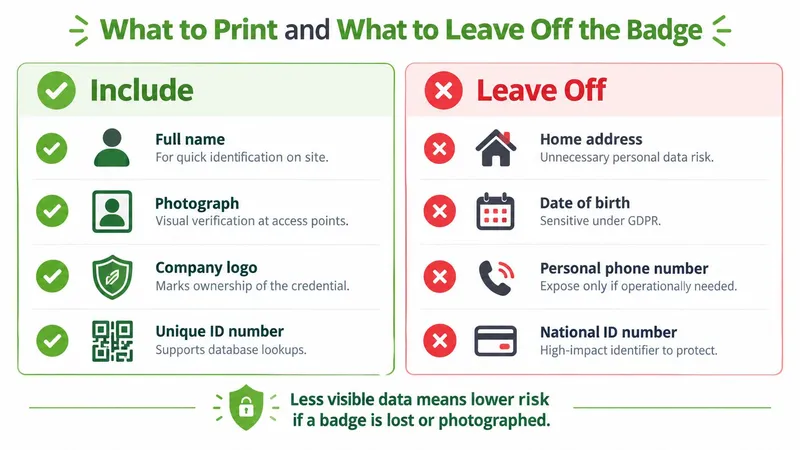

What to Print and What to Leave Off the Badge

A badge isn't a business card. It's a small privacy surface that people can lose, photograph or post on social media. The safest visible badge contains enough information to identify the wearer and perform its operational role, but no more.

For many UK workplaces, a sensible default is first name, role, company or department, and a non-personal identifier such as an employee number or company initials. A photograph helps on a high-security site where staff compare the face with the card. It's unnecessary for a one-day event where colour-coded access zones and controlled check-in do the job.

The ICO explains that data-protection law applies when an organisation processes workers' personal information, including employment records. A worker's name, photograph, job title, department, employee number, access category and linked QR or barcode can all form part of that processing. The organisation needs a defined purpose, data minimisation, restricted access and clear privacy information. See the ICO employment records guidance before collecting photographs or linking visible identifiers to staff records.

Use a decision rule, not a crowded template

Ask one question for every field: does the badge need this information to perform its job? If the answer is no, leave it off.

Include:

• First name or full name: Choose the level of identification staff and visitors need.
• Role or access group: A clear role label supports quick checks.
• Photograph: Use it where visual verification matters.
• Company or event identity: Show who issued the credential.
• Unique identifier: Link the card to a controlled database rather than exposing unnecessary personal data.
• Expiry date: Make validity visible at the point of inspection.

Leave off home addresses, personal telephone numbers, dates of birth, National Insurance numbers, payroll references, emergency-contact details and home postcodes. Avoid direct dial extensions unless the badge needs them. Don't print card numbers that expose more information than the verifier requires.

A role stripe can be more useful than extra text. Red might identify a visitor, blue a contractor and green a staff member, provided the system also uses words, icons or another accessible marker. Colour alone excludes people who can't distinguish it reliably.

The UK Government's accessibility guidance reinforces the wider principle that identity processes must be usable. Test contrast, type size, glare, lanyard positioning and non-visual alternatives before approving a large run.

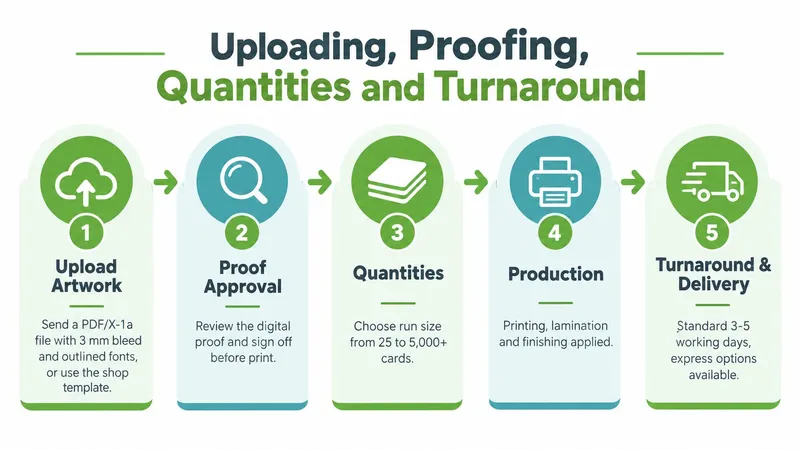

Uploading, Proofing, Quantities and Turnaround

The ordering process should create a chain of accountability. Upload the artwork, provide the data, approve the proof, then release production. Don't send a spreadsheet and ask the printer to “make it look right”.

Supply a print-ready PDF/X-1a with 3mm bleed and outlined fonts, or use the printer's template. For variable badges, provide a separate CSV with one row per badge and consistent field names. Match every photograph to the correct record before uploading, and don't include unused personal fields just because the spreadsheet already contains them.

Approve the proof before the press starts

A digital proof checks layout, spelling, image placement, orientation and variable-data mapping. Read every name, role and expiry date. Scan a sample QR code or barcode if one is present. For colour-critical work, request a printed proof, particularly for a run of more than 200 units.

Quantity planning affects price. Common ordering brackets include 50, 100, 250, 500, 1000 and 2000 badges. Compare the next bracket before settling on a quantity, but don't buy excess cards containing personal data just to reduce the unit price. For events, retain a reorder plan for late registrations rather than printing every possible attendee in advance.

Standard production is often 3 to 5 working days after proof approval, while next-day and same-day services may be available at a premium. Treat those as service targets to confirm with the printer, not promises to assume. Ask whether the order ships to one UK address or several sites, and whether clips and lanyards arrive attached or packed separately.

A controlled release workflow matters as much as the press. One operator should compare the printed badge with the source record. A second person should confirm identity, spelling, photograph, validity dates and any encoded payload before release. Inspect every badge for scratches, poor lamination, cropped faces, incorrect slots and colour defects.

The ICO's data-protection guidance for UK organisations supports a risk-based approach. Store photographs and print-ready files securely, restrict access, encrypt transfers, lock the printer area and delete or archive production files according to a documented retention schedule.

Pre-Flight Checklist and Common Ordering Questions

Pin this checklist beside the person placing the order:

• Purpose: Confirm whether the badge is for staff identity, visitors, contractors, event accreditation or access control.
• Format: Choose CR80, an event bar or another size, then confirm whether the orientation is vertical or horizontal.
• Stock: Select PVC, composite, PLA, pulp, Teslin or paper according to lifespan and environment.
• Finish: Decide between gloss, matte, soft-touch, laminate, slotting and hole punching.
• Artwork: Check 300 dpi at actual size, CMYK, 3mm bleed, 3mm safe zone and outlined fonts.
• Data: Supply only necessary fields, with photographs matched to the correct records.
• Security: Confirm whether the badge needs a visible expiry date, photo, barcode, QR code, magnetic stripe or chip.
• Proof: Check names, roles, photos, dates, orientation and encoded data before approval.
• Quantity: Compare the required run with 50, 100, 250, 500, 1000 and 2000 brackets, then plan reorders for growing events.
• Delivery: Confirm one or multiple addresses and whether accessories are attached or packed separately.
• Retention: Set a deletion or archive date for photographs, spreadsheets, proofs and access records.

Common questions from UK buyers

Do staff photographs create GDPR obligations? Yes. A photograph is personal data when it identifies a worker. Define the purpose, choose a lawful basis, explain the processing clearly, limit access and delete the image when the retention purpose ends.

Is PVC suitable for an outdoor event? It can be, particularly with suitable lamination, but choose the construction for exposure, handling and expected lifespan. Paper is a poor choice where rain or repeated handling is likely.

Does double-sided artwork cost extra? It can affect the quoted price because it changes the print specification and production time. Ask for a quote with the front and back supplied in the correct template rather than assuming the reverse side is included.

What's the minimum order? It depends on the printer, product and finishing. Ask for the actual minimum rather than designing around an assumed threshold.

What happens if the printer makes an error? A production fault should be reported promptly with photographs and the approved proof. If the error came from an incorrect customer file or an approved spelling mistake, a reprint may be chargeable. Check the supplier's terms and conditions before approving the order.

How do I handle a replacement badge? Cancel the old credential in the authoritative access record, issue a new unique identifier where appropriate and keep the replacement tied to the correct holder. A new print should never extend old permissions.
